الکتروپوریتور ، الکتروپوریشن ، کمپانیBio-Rad ، مدلGene Pulser Xcell Total System

SPECIFICATION

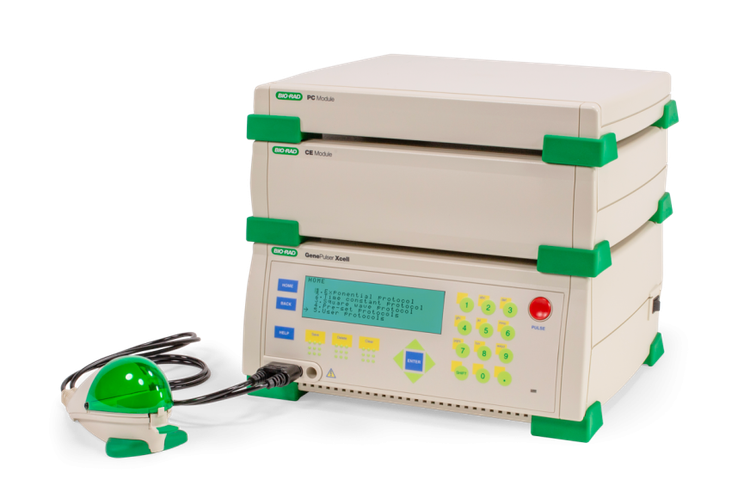

Gene Pulser Xcell Total System

Includes main unit, CE module, PC module, and ShockPod cuvette chamber



Outputs

Waveform: Exponential or square
Voltage: 10–3,000 V

Capacitance

10–500 V, 25–3,275 µF in 25 µF increments
500–3,000 V, 10, 25, 50 µF

Resistance (parallel)

50–1,000 Ω in 50 Ω increments, plus infinity

Sample resistance

20 Ω minimum at 10–2,500 V
600 Ω minimum at 2,500–3,000 V

Square-wave timing

10–500 V: 0.05–10 ms in 0.05 ms increments, 10–100 ms pulse in 1 ms increments, 1–10 pulses, 0.1–10 sec interval
500–3,000 V: 0.05–5 ms in 0.05 ms increments, 1–2 pulses, 5 sec minimum interval

Gene Pulser Xcell Eukaryotic System
Includes main unit, CE module, and ShockPod cuvette chamber



Outputs and other specifications

Same as total system without the parallel resistance

Gene Pulser Xcell Microbial System
Includes main unit, PC module, and ShockPod cuvette chamber



Outputs

Waveform: Exponential or square
Voltage: 200–3,000 V

Capacitance

10, 25, 50 µF

Resistance (parallel)

50–1,000 Ω in 50 Ω increments, plus infinity

Sample resistance

20 Ω minimum at 200–2,500 V
600 Ω minimum at 2,500–3,000 V

Square-wave timing

0.05–5 ms pulse duration in 0.05 ms increments,
1–2 pulses, 5 sec minimum interval

Gene Pulser Xcell Main Unit



Outputs

Waveform: Exponential or square
Voltage: 200–3,000 V

Capacitance

10, 25, 50 µF

Sample resistance

20 Ω minimum at 200–2,500 V
600 Ω minimum at 2,500–3,000 V

Square-wave timing

0.05–5 ms pulse duration in 0.05 ms increments,
1–2 pulses, 5 sec minimum interval

General



Input voltage

100–120 VAC or 220–240 VAC, 50/60 Hz

Power

Maximum 240 W (during short charging periods)

Operating environment

Temperature 0–35°C, humidity 0–95% (noncondensing)

Regulatory

Safety EN 61010, EMC EN 61326 Class A

Dimensions (W x D x H)

Main unit: 31 x 30 x 14 cm
CE module: 31 x 28 x 9 cm
PC module: 31 x 28 x 5 cm

Weight

Main unit: 6.6 kg
CE module: 3.1 kg
PC module: 1.9 kg

Use

For Research Use Only. Not for use in diagnostic procedures.
